Epson EB-L630U WUXGA Laser Projector: High-Brightness Versatility for Large Venues

The Epson EB-L630U (sold as PowerLite L630U in the U.S.) is a high-performance laser projector designed for classrooms, boardrooms, and large-scale installations. With 6,200 lumens of color and white brightness, WUXGA resolution (1920 × 1200), and a 20,000-hour laser light source, it combines reliability with professional-grade features for immersive visuals and flexible workflows .

Key Features of the Epson EB-L630U

• Brightness: 6,200 lumens (ISO-certified) for daylight clarity 14.

• Resolution: WUXGA (1920 × 1200) with 16:10 aspect ratio and 4K input support 38.

• Laser Lifespan: Up to 20,000 hours (30,000 hours in Eco Mode) for minimal maintenance 14.

• Contrast Ratio: 2,500,000:1 for deep blacks and vibrant details 38.

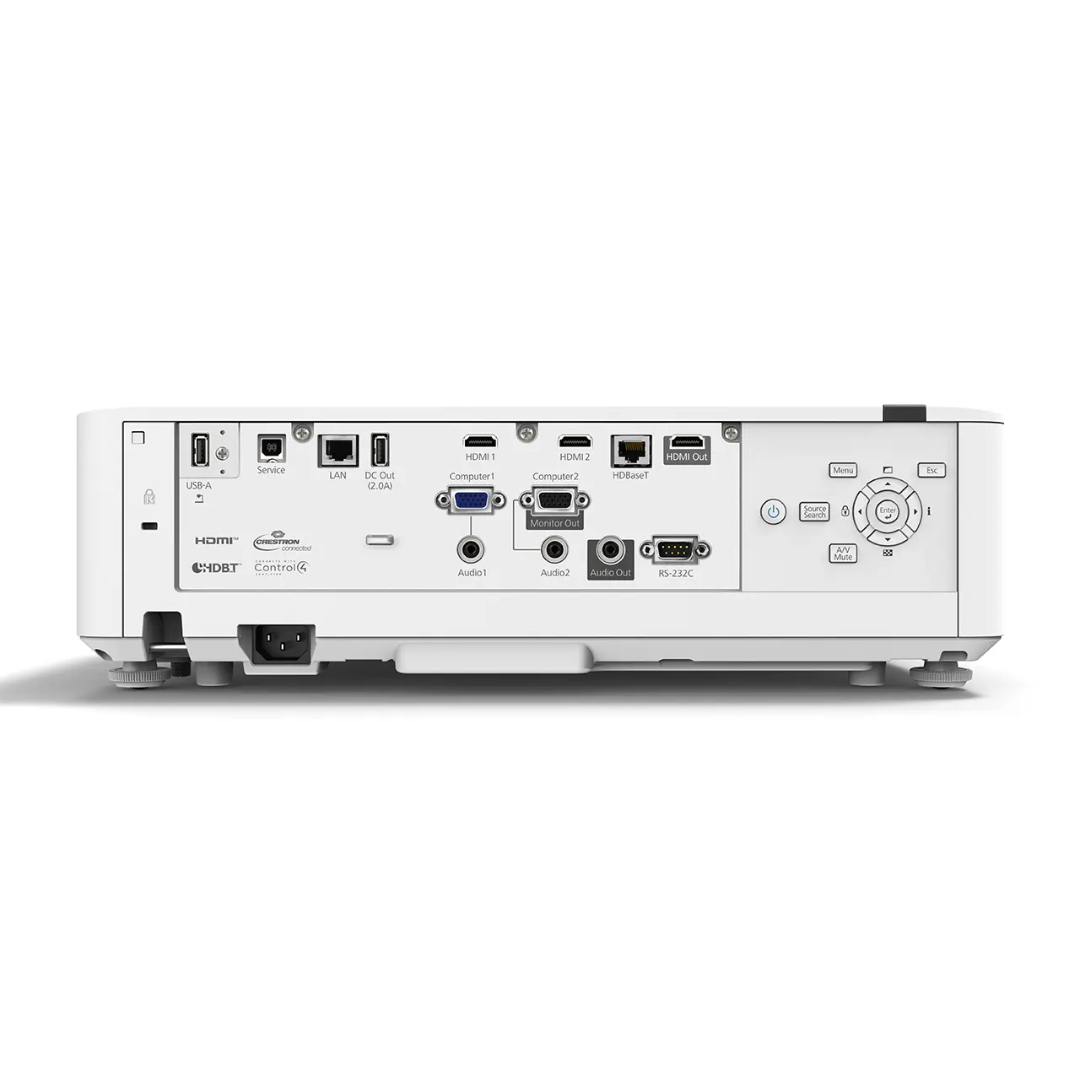

• Connectivity: Dual HDMI 1.4, HDBaseT, USB, VGA, RS-232C, and optional wireless via ELPWP10 module 48.

• Installation: 1.6x optical zoom, ±50% vertical/±20% horizontal lens shift, and 360° projection 48.

• Warranty: 3–5 years (varies by region) 12.

Professional Performance

The EB-L630U leverages 3LCD technology to deliver 1.07 billion colors with uniform brightness, eliminating the “rainbow effect” common in DLP projectors 38. Its 6,200-lumen output ensures crisp text and vivid imagery even in brightly lit environments, while the WUXGA resolution supports Full HD content and 4K/60Hz 4:2:0 signals for enhanced detail 39.

The 1.6x optical zoom and manual lens shift simplify alignment in challenging setups, such as auditoriums or rear-projection configurations 48. The projector’s dynamic contrast ratio (2,500,000:1) enhances depth in multimedia content, making it ideal for presentations, films, and digital signage 39.

Advanced Features 489

1. Edge Blending & Geometric Correction: Merge projections from multiple units for panoramic displays and correct distorted images using grid-based adjustments.

2. Split-Screen Collaboration: Display up to four inputs simultaneously, with support for 50 users via Epson iProjection.

3. Content Playback: Built-in media player supports USB flash drives for direct projection without a PC.

4. 4K Input Support: Accepts 4K/60Hz signals for high-resolution content compatibility.

5. Security: Kensington lock, password protection, and enterprise-grade wireless security.

Warranty and Purchase Notes

• Warranty:

  • Europe: 36-month carry-in warranty 12.

  • Global: 3-year standard warranty (varies by region; extended plans available via CoverPlus) 1112.

• Included Accessories: Remote control, HDMI cable, power cable, and user guide 412.

• Price:

  • MSRP: $3,149 (U.S.), £2,190.80 (UK inc VAT), GH₵11,680 (Ghana) 1712.

Pros and Cons 938

User Feedback 9

• Image Quality: 90% of users praise its vibrant colors and sharp details.

• Brightness: 92% highlight its effectiveness in well-lit environments.

• Ease of Installation: 80% found setup intuitive, though 20% noted challenges with ceiling mounting.

• Durability: 88% commend its robust build, while 12% report minor wear on components like the lens cover.

Conclusion

The Epson EB-L630U excels as a cost-effective, high-brightness solution for large venues, offering unmatched flexibility with 360° installation, edge blending, and collaborative tools. While its weight and manual adjustments may limit portability, its laser reliability and 4K compatibility make it ideal for education, corporate events, and digital signage.
